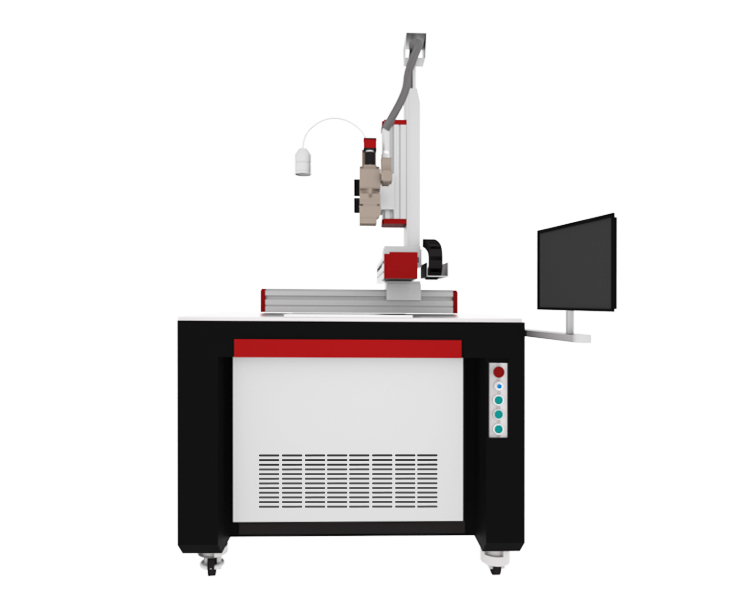

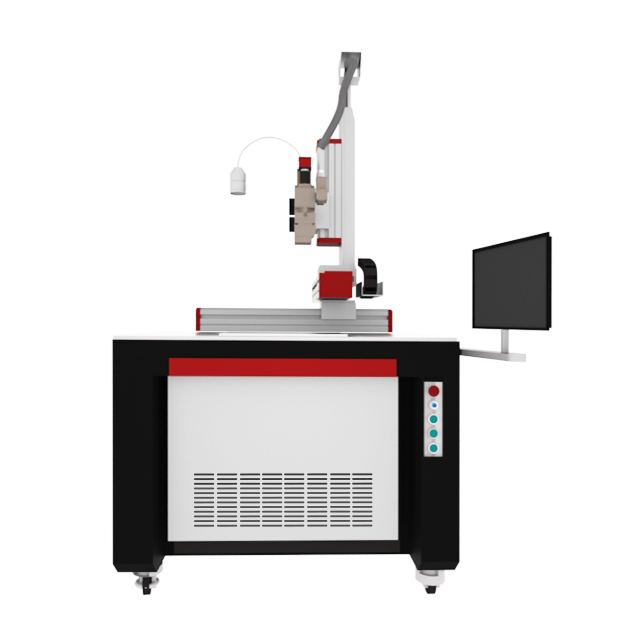

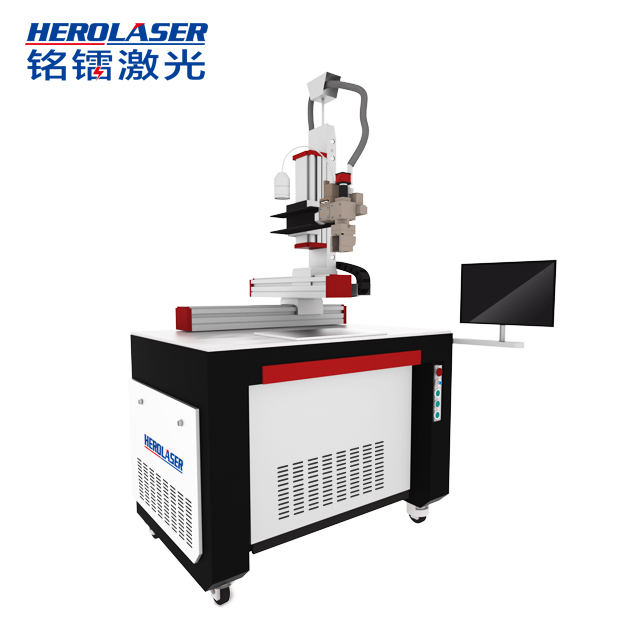

Four-dimensional automatic welding machine

Laser welding machine
Hero laser automatic laser welding machine adopts manual design, simple and convenient installation and operation, adopts self-equipped cooling system, does not need any external water tower for water cooling, the maximum frequency can reach 100HZ, the linear speed can reach 8mm/s, which greatly improves the welding efficiency and welding quality. It can also be equipped with a four-dimensional ball screw table, using an imported servo control system, including a rotating table, which can weld cylindrical objects and other objects of various shapes, with a wide range of applications, high precision and fast speed. The current waveform can be adjusted arbitrarily, which can be applied to various materials and alloys.
Make an inquiry now
Product introduction

Parameter
Main technical parameters of the equipment
Product Specifications
S/N
Main component name
Parameter
Remark
1
X axis effective stroke
500mm

2
Y axis effective stroke
300mm

3
Z axis effective stroke
300mm

4
Dimensions
1500×1400×1900mm

5
Machine weight
280kg

6
Module operating speed
Y axis:10m/min
X axis:10m/min
Z axis:5m/min

7
repeated positioning accuracy
±0.02mm

8
Rotating table
Circle runout accuracy ≤0.05mm

9
electricity demand
220V/380V

10
Average load power
7.5KW

 Equipment configuration list
Configuration Parameter
S/N
Name
Specifications & Models
QTY
Brand
Remark
1
Fixture mounting plate
350mm×450mm
1
Hero Laser Custom

2
Laser
According to sample welding requirements
1
MAX or IPG

3
Motor
servo motor
3
Huichuan

4
Computer
PC/Industrial Computer
1
Advantech

5
Chiller
According to laser power
1
S & A

6
Welding head
According to sample welding requirements
1
Hero Laser

7
CCD Visual observation system
camera
light source
1
Microsan
Basler/LeTV Light Source

8
Z axis module
300mm stroke
1
Hero Laser Custom
X, Y axis screw lead 10mm, Z axis screw lead 5mm; screw accuracy: C7
9
X axis module
500mm stroke
1
Hero Laser Custom
10
Y axis module
300mm stroke
1
Hero Laser Custom
11
Rotating table
Three-jaw rotary chuck
1
Hero Laser Custom

12
Lower cabinet
Sheet metal welding, paint baking
1
Hero Laser Custom

Products Description

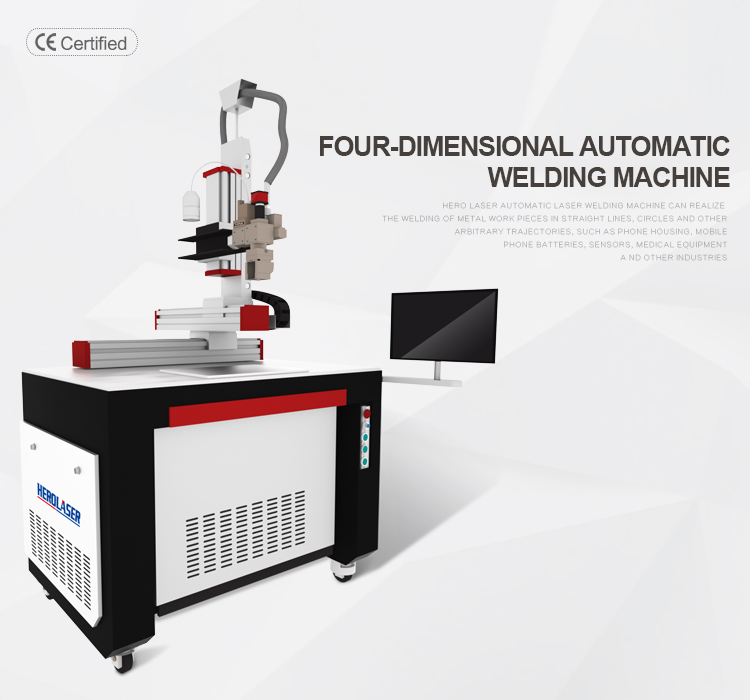

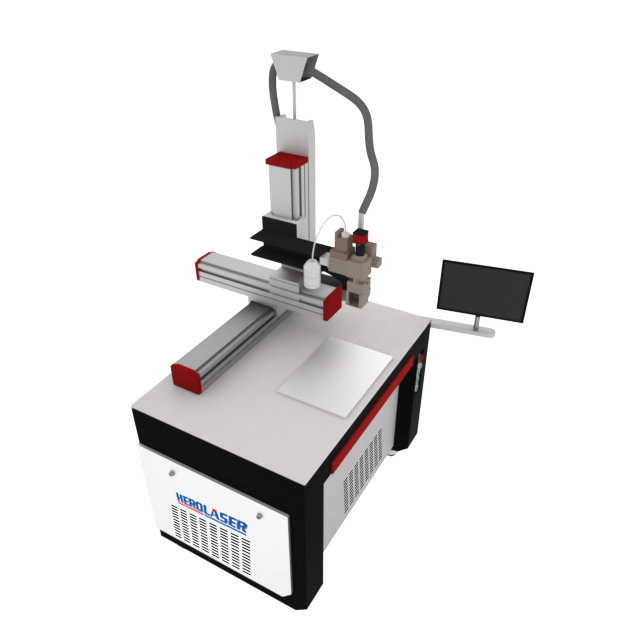

Four-dimensional automatic welding machine

Hero laser automatic laser welding machine adopts manual design, simple and convenient installation and operation, adopts self-equipped cooling system, does not need any external water tower for water cooling, the maximum frequency can reach 100HZ, the linear speed can reach 8mm/s, which greatly improves the welding efficiency and welding quality.
It can also be equipped with a four-dimensional ball screw table, using an imported servo control system, including a rotating table, which can weld cylindrical objects and other objects of various shapes, with a wide range of applications, high precision and fast speed.
The current waveform can be adjusted arbitrarily, which can be applied to various materials and alloys.


Laser welding machines use high-energy pulsed lasers to weld objects

Hero laser automatic laser welding machine can realize the welding of metal work pieces in straight lines, circles and other arbitrary trajectories, such as phone housing, mobile phone batteries, sensors, medical equipment and other industries.
Laser welding machines use high-energy pulsed lasers to weld objects, laser pulses’ high energy and high density can make the welding smooth, the weld width is small and the heat-affected zone is small, and it can complete the precision welding that cannot be achieved by the traditional technology.
Laser automatic welding machine series welding machine is a laser welding machine developed and produced with German welding machine technology.
The welding efficiency is high, the effect is good, and the operation is simple and convenient. It is suitable for the welding of flat straight lines, arcs and arbitrary trajectories of various materials.
Applicable to all kinds of metal materials: aluminum, stainless steel, gold, silver, alloy, steel, diamond equivalent material welding or dissimilar material welding; applicable range: mobile phone batteries, jewelry, electroniccomponents, sensors, clocks, precision machinery, communications , handicrafts and other industries.

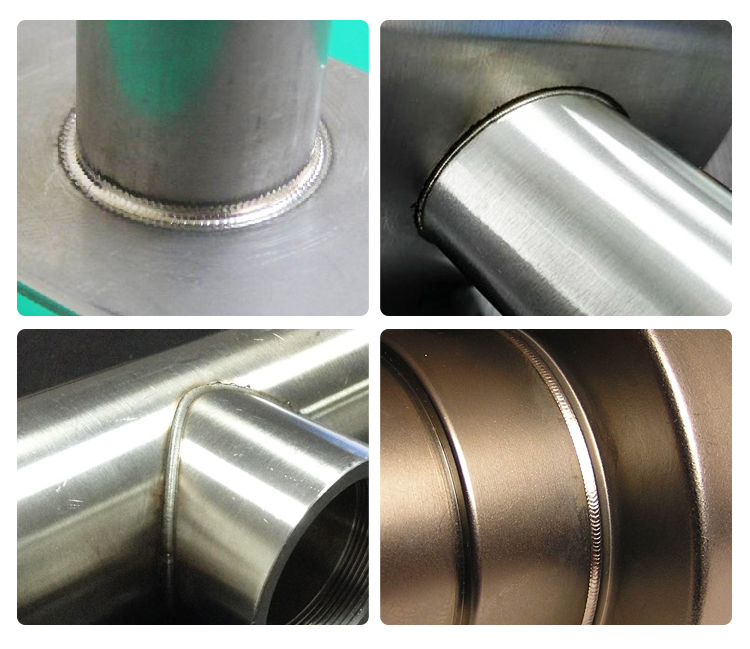

Sample Show
Applicable Industry

mobile phone batteries

jewelry

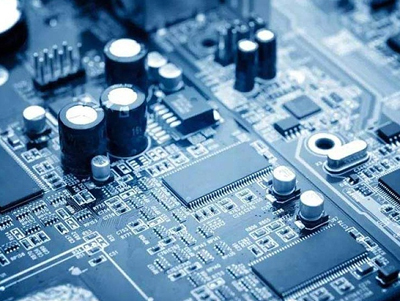

electronic components

precision machinery

communications

handicrafts

Installation Instructions

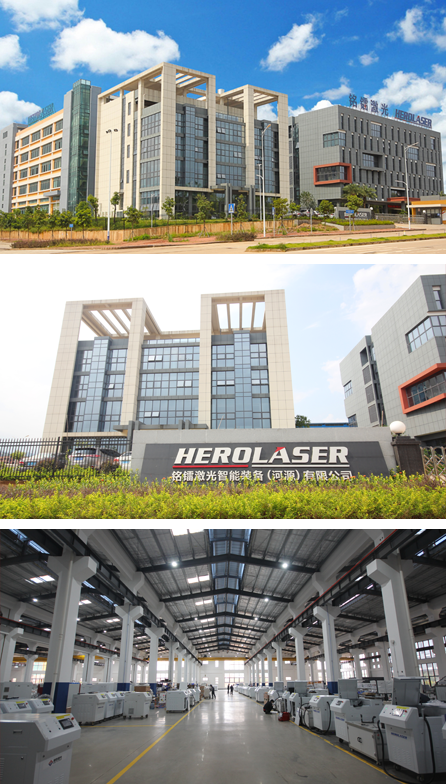

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.

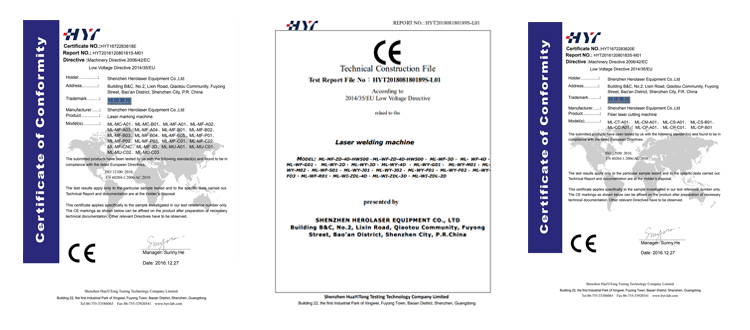

Certification

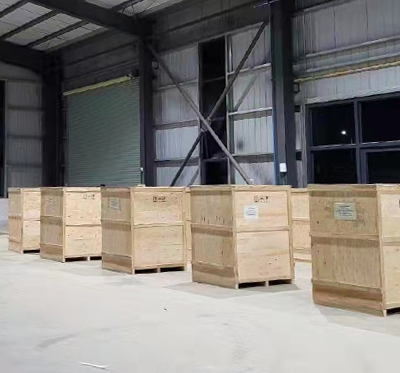

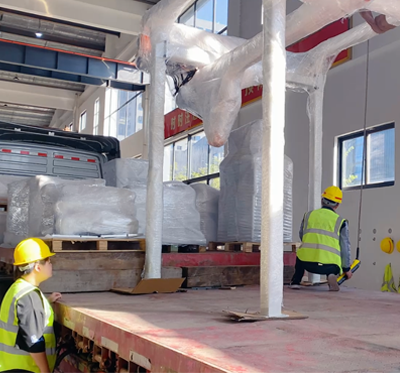

Packaging & Shipment
Our Services

---Pre-Sales Service

① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time

---After-sales Services
① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service

FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?

Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?

Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7.How is the delivery and shipment?

Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9.How will you guarantee after-sales services?

We offer two years warranty for laser source, one year for the machine.

10.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
